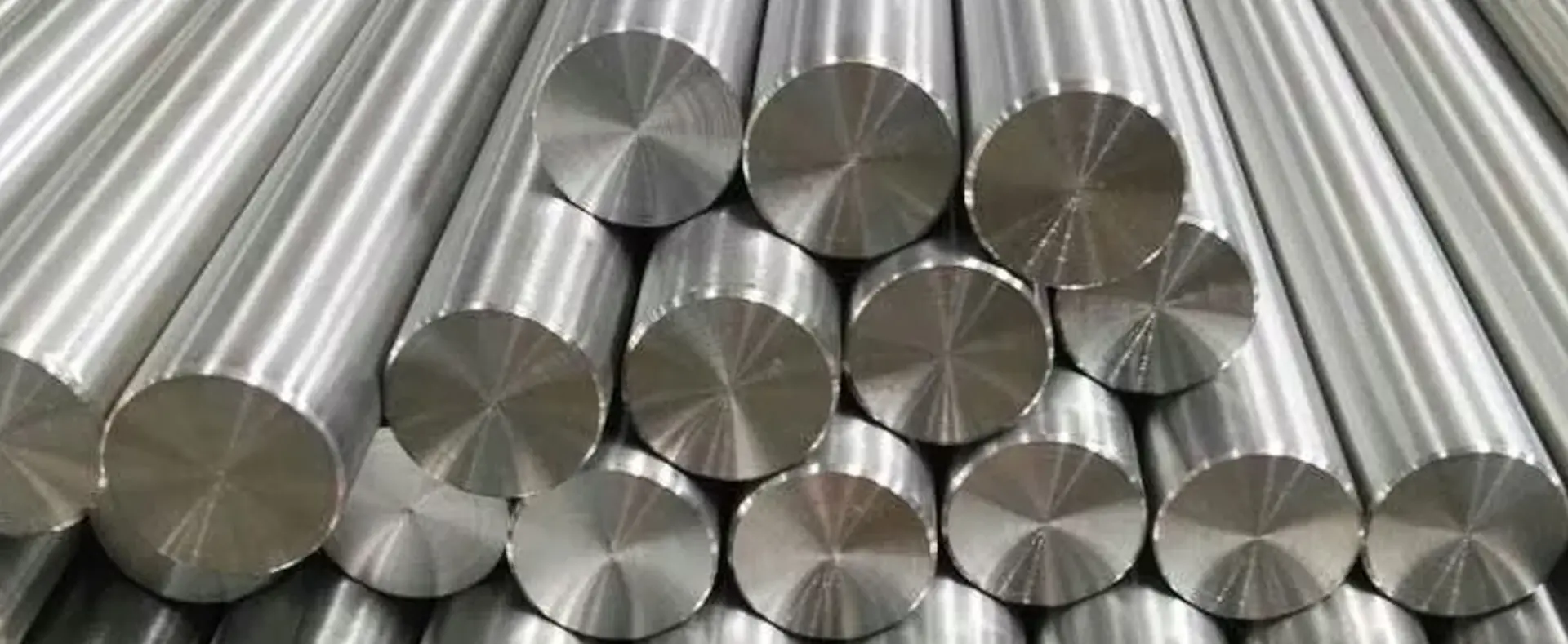

Duplex 2205 Round Bar Manufacturers in India
select ASME SA 276 Type 2205 Duplex Stainless Steel Hex Bar, Spigots, rebar from Our stock in India, Check updated price list of Din 1.4462 Flat Bar
Duplex steels combine the best features of both ferritic and austenitic stainless steels. Duplex 2205 Round Bar is a duplex stainless steel grade that has been enhanced with nitrogen. The grade 300 series of stainless steel is sometimes called Duplex, as it doesn’t fit completely into either the austenitic group, like 304 stainless steel, or the ferritic group, like 430 stainless steel. The microstructure of S31803 Duplex Spring Steel Bar consists of austenite pools surrounded by a continuous ferrite phase. Alloy grade 2205 Duplex Stainless Steel Round Bar was developed to address common corrosion problems found in austenitic stainless steels in the 300 series.
Duplex 2205 Rod has many uses due to its overall corrosion resistance, high strength, excellent weldability, and good workability. It also offers high resistance to chloride stress corrosion cracking, sulphide stress corrosion, and chloride pitting and crevice corrosion. Duplex 2205 Threaded Rod is useful in various applications, but it has slightly lower machinability, requiring slower cutting speeds, about 20% slower than grade 304.
Duplex steels are more prone to chloride stress corrosion cracking due to their duplex structure. Duplex 2205 Welding Rod, however, offers excellent strength, durability, and weldability. When welding duplex stainless steel, the goal is to maintain the base metal’s strong corrosion resistance and high impact strength in both the fused and heat-affected zones.
Material Specification of ASTM A276 Type 2205 Round Bar
| UNS S32205 Bars Grade | Duplex 2205 – UNS S32205 |
|---|---|
| Standard | ASME, ASTM, GB, API, DIN, AISI, SUS, EN, UNS |
| WERKSTOFF NR. 1.4462 Round Bars Specification | 2205 Duplex Stainless Steel, ASTM A276 UNS S32205 |
| Duplex 2205 Round Bars size | Diameter: 3-~800mm |
| SAF 2205 Hex Bars size | 2-100mm A/F |
| 2205 Duplex Stainless Steel Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Duplex 2205 Square Bars size | 4 to 100mm |
| Duplex SS 2205 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| UNS S32205 Section | 3.0 to 12.0mm thickness |
| Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Duplex Steel UNS S32205 nickel Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| 1.4462 Duplex 2205 Billet Size | 1/2″ to 495mm Diameter |
| ASTM A276 Type 2205 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| ASTM A276 Type 2205 Round Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Duplex Steel S31803 Round Bars Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Din 1.4462 Round Bars Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
Duplex SS 2205 Bars Condition | Hardened & tempered, annealed |
| c276 Bars Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bars, Rod |
| 2205 Duplex Stainless Steel Bars Processing | Bars cutting to 650mm |
| Our UNS S32205 Round Bars dealers & distributors are located in | Gimhae-si, Port-of-Spain, Abu Dhabi, Pimpri-Chinchwad, New Delhi, India, Chennai, Santiago, Manama, KhoBars, Howrah, Muscat, Tehran, Noida, Thiruvananthapuram, Ahmedabad, Courbevoie, Nagpur,Indore, Barsoda, Bogota, Calgary, Caracas, Surat, Kolkata, Montreal, Istanbul, Vadodara, Bengaluru, Gurgaon, Gujarat, Janeiro, Karachi, Rajkot, Ahvaz, Mexico Ranchi, Perth, Ernakulam, Sydney, Coimbatore, Melbourne, Dammam, Jamshedpur, Mumbai, Ankara, Ludhiana, Bangalore, London, Riyadh, Hyderabad, Kuwait, Kanpur, Tau, Lagos |
Duplex 2205 Hollow Bar Related Specifications
| Hollow Bar Common Name | Related Specifications | Tensile Strength | Proof Test | Elongation | ||
|---|---|---|---|---|---|---|
| British | European | United States | N/mm2 (ksi) | N/mm2 (ksi) | (%) | |
| UNS S31803/ S32205 | UNS S32205 UNS S31803 EN 1.4462 X2 CrNiMoN 22-5-3 |
ASTM A790 NACE MR 1075 / ISO 15156 ASME Case 2067-2 |
680 (99) | 450 (65) | 25 | |
| Duplex 2205 Hollow Bar | 318S13 | 1.4462 X2CrNiMoN22.5.3 |
ASTM A276 S31803/ S2205 ASTM A182 F51 / F60 |
655 (95) | 450 (65) | 25 |
| UNS S32205 Duplex F60 (UNS31803 Duplex F51) | 1.4462 | ASTM A479/A182 UNS S32205 Duplex F60 UNS S31803 Duplex F51 |
655 (95) | 450 (65) | 25 |
Price of Duplex 2205 Round Bar in India
| Description | Price list of Duplex 2205 Round bar in India |
|---|---|
| Duplex Stainless Steel 2205 Round Bar Best Price | US $ 1500 / Ton |
| Cold Drawn High Precision AISI Duplex 2205 Stainless Steel Bright Round Bar | US $ 800-1000 / Ton |
| Duplex 2205 Stainless Steel Round /Rod Bar | US $ 590-680 / Ton |
| Duplex 2205 Steel Ground Round Bar | US $ 99-189 / Piece |
| Cold Rolled/Drawn 2205 Duplex Stainless Steel Round Bar | US $ 2.5-10 / kg |
| High-Quality Duplex Grade 2205 Stainless Steel Round Bar | US $ 1200-2500 / Ton |
| Duplex 2205 1.4410 Stainless Steel Round Bar | US $ 2500-12000 / Ton |
| Anti Corrosion 2205 Duplex Stainless Steel Round Bar for Chemical Industry | US $ 899-3000 / Ton |
WERKSTOFF NR. 1.4462 Round Bar Condition
| H&T | Hardened and tempered. |
| ANN | Annealed |
| PH | Precipitation hardened. |
Weight chart of WERKSTOFF NR. 1.4462 Round Bar
| Duplex 2205 Round bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 | ||||||
standards of Duplex 2205 Round bar
| Grade | EN 10088-3 | EN 10272 | AD2000- W2/W10 |
ASTM A 479 | ASME SA 479 | NACE MR 0175 |
|---|---|---|---|---|---|---|
| Duplex 2205 Round Bars | 20-450 mm | 20-160 mm | – | 20-450 mm | 20-450 mm | Independent of size |
Duplex 2205 Round Bar Size chart
| Duplex 2205 Round bar Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| 2205 Duplex Stainless Steel Cold Drawn and Polish Round Bar | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Duplex SS 2205 Cold Drawn and Ground Bar | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| UNS S32205 Peeled and Polished Round Bar | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Duplex 2205 Peeled and Ground Bar | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
2205 Duplex Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
The sizes of 2205 Duplex Stainless Steel Bars can also be selected when using the THD model.
| Duplex 2205 Round bar Size & Dimensions of Duplex 2205 | |||||||
|---|---|---|---|---|---|---|---|
| Metric | US Bar | ASTM/ Canadian | Japanese | ||||
| Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.625 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.625 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
Prestige quality Duplex 2205 Round Bar suppliers offer variety of shapes such as Round Bar, Square Bar, Hexagonal Bar, Flat Bar, Channels & Hollow Bar.
