Stainless Steel 310 Pipe Fittings Manufacturer
ASME B16.9 ASTM A403 WP 310 Buttweld Elbow manufacturer in India, Check 310 Stainless Steel Buttweld Fittings Dimension
Stainless Steel 310 Pipe Fittings offer better corrosion resistance than 304 and 316 grade fittings. They also resist oxidation and high temperatures, making them ideal for pressure pipe applications. Delta Steel is a top manufacturer and supplier of these fittings in various sizes and types. The fittings contain 24% chromium and 19% nickel, along with other elements like carbon, manganese, silicon, phosphorus, sulfur, molybdenum, and nitrogen. This composition enhances the fittings’ corrosion resistance and strength.

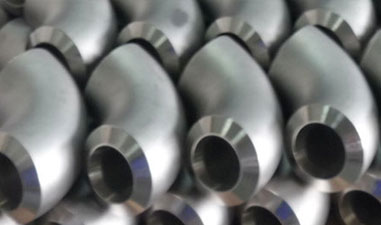

Stainless Steel 310 Pipe Fittings

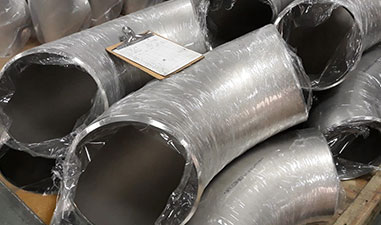

ASTM A403 WP 310 Buttweld Elbow

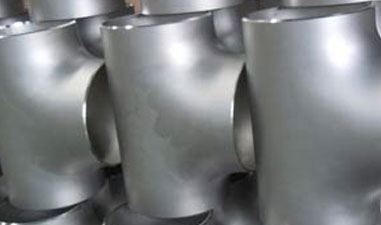

310 Stainless Steel Buttweld Fittings
High Pressure Pipeline Welded Grade 310 Stainless Steel 90 degree Elbow, Check Best Quality Glossy Finish SAE 310 Stainless Steel Cross Price in India.
The ASTM A403 WP 310 Buttweld Elbow is a pipe fitting used to change the direction of a pipe, typically at 45 or 90 degrees. These elbows come in different sizes and are available as short radius or long radius types. Made from 310 grade stainless steel, these fittings have a minimum yield strength of 205 MPa and a minimum tensile strength of 515 MPa. Due to the high melting point of 310 steel (1402°C), these fittings can handle high temperatures and pressures, making them suitable for use in heat exchangers and boiler components.
The Grade 310 Stainless Steel 90-degree Elbow is one of the most common types. It is often chosen over bends because it helps reduce pressure on the fitting walls by increasing the turn distance. These fittings follow the ASTM A182 specification and are available in outer diameters from 1/16 inch to 2 inches. They also come with various threading options such as NPT, BSP, and BSPT. The SAE 310 Stainless Steel Cross is another fitting used to connect four pipes at a single point and is available in different pressure ratings, such as 6000 psi.
For more details and pricing on 310 grade stainless steel fittings, please contact us.
ASTM A403 WP 310 Buttweld Elbow Specification Format
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Weight Chart Of 310 Stainless Steel Buttweld Fittings
|
Product range and theoretical weights (kg) |
|||||||||
|
DN |
Schedule 10S |
Schedule 40S |
Schedule 80S |
||||||
|
900 Elbow |
450 Elbow |
Equal tee |
900 Elbow |
450 Elbow |
Equal tee |
900 Elbow |
450 Elbow |
Equal tee |
|
|
8 |
0.02 |
0.01 |
0.03 |
0.03 |
0.02 |
0.06 |
0.04 |
0.03 |
0.07 |
|
10 |
0.03 |
0.02 |
0.05 |
0.03 |
0.02 |
0.03 |
0.06 |
0.04 |
0.09 |
|
15 |
0.06 |
0.03 |
0.09 |
0.08 |
0.04 |
0.10 |
0.10 |
0.05 |
0.14 |
|
20 |
0.07 |
0.03 |
0.13 |
0.08 |
0.04 |
0.17 |
0.11 |
0.05 |
0.20 |
|
25 |
0.14 |
0.08 |
0.28 |
0.15 |
0.11 |
0.29 |
0.22 |
0.14 |
0.38 |
|
32 |
0.23 |
0.11 |
0.49 |
0.26 |
0.17 |
0.59 |
0.40 |
0.23 |
0.68 |
|
40 |
0.30 |
0.17 |
0.68 |
0.40 |
0.23 |
0.86 |
0.51 |
0.29 |
1.02 |
|
50 |
0.50 |
0.25 |
0.85 |
0.70 |
0.4 |
1.28 |
0.91 |
0.59 |
1.59 |
|
65 |
0.85 |
0.48 |
1.41 |
1.40 |
0.77 |
2.19 |
1.81 |
0.99 |
3.13 |
|
80 |
1.25 |
0.63 |
1.77 |
2.20 |
1.08 |
3.31 |
2.97 |
1.50 |
4.45 |
|
90 |
1.70 |
0.75 |
2.67 |
2.83 |
1.42 |
4.08 |
4.00 |
2.00 |
5.44 |
|
100 |
2.10 |
1.08 |
3.46 |
4.47 |
2.09 |
5.27 |
6.18 |
2.81 |
7.71 |
|
150 |
5.45 |
2.72 |
8.07 |
10.89 |
5.44 |
10.99 |
16.32 |
8.16 |
13.61 |
|
200 |
10.20 |
5.33 |
15.65 |
21.54 |
10.77 |
20.91 |
33.11 |
16.56 |
28.12 |
|
250 |
18.15 |
9.75 |
26.46 |
38.56 |
19.27 |
35.38 |
51.71 |
25.86 |
49.90 |
|
300 |
25.80 |
13.62 |
39.46 |
59.42 |
29.71 |
62.14 |
79.38 |
39.69 |
83.91 |
|
Product range and theoretical weights (kg) |
|||||||||
|
DN |
Schedule 10S |
Schedule 40S |
Schedule 80S |
||||||
|
Con reducer |
Ecc reducer |
Reducing tee |
Con reducer |
Ecc reducer |
Reducing tee |
Con reducer |
Ecc reducer |
Reducing tee |
|
|
40x.25 |
0.19 |
0.19 |
0.60 |
0.26 |
0.26 |
0.76 |
0.34 |
0.34 |
0.90 |
|
50×25 |
0.28 |
0.28 |
0.73 |
0.40 |
0.40 |
1.10 |
0.54 |
0.54 |
1.37 |
|
50×40 |
0.31 |
0.31 |
0.76 |
0.45 |
0.45 |
1.15 |
0.59 |
0.59 |
1.43 |
|
80x.50 |
0.55 |
0.55 |
1.56 |
1.00 |
1.00 |
2.91 |
1.79 |
1.79 |
3.91 |
|
100×50 |
0.78 |
0.78 |
2.94 |
1.50 |
1.50 |
4.48 |
1.95 |
1.95 |
6.55 |
|
100×80 |
0.87 |
0.87 |
3.04 |
1.74 |
1.74 |
4.64 |
2.33 |
2.33 |
6.79 |
|
150×80 |
1.82 |
1.82 |
6.86 |
3.95 |
3.95 |
9.68 |
5.51 |
5.51 |
11.57 |
|
150×100 |
1.96 |
1.96 |
7.10 |
4.07 |
4.07 |
11.94 |
5.96 |
5.96 |
11.97 |
|
200×100 |
3.01 |
3.01 |
13.46 |
6.55 |
6.55 |
17.98 |
9.23 |
9.23 |
24.18 |
|
200×150 |
3.19 |
3.19 |
14.08 |
6.74 |
6.74 |
18.82 |
10.12 |
10.12 |
25.31 |
Equivalent Of SAE 310 Stainless Steel Cross
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
SUS 310 Stainless Steel Short Radius Elbow, 24 inch, ANSI B 16.9 ASTM A403 F310 Stainless Butt weld Pipe Fittings, View Stainless Steel 310 5d Bend properties.
Chemical Standard of 310 Stainless Steel Pipe Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
SS UNS S31000 Reducer Dimensions Chart
| Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
SS 310 Grade Equal Tee Price per piece
| ASTM A403 WP310s Pipe Fittings Price Per Piece in India | ASTM A403 WP310h Fittings Price in INR | ASTM A403 WP310h Fittings Price in UAE Dirham |
| ASTM A403 WP310 Buttweld Fittings Price in India | Rs. 405 | UAE Dirham 20.75 |
| ASTM A403 WP310s Pipe Fittings Price in India | Rs. 291 | UAE Dirham 14.91 |
| ASTM A403 WP310h Buttweld Pipe Fittings Price List | Rs. 623 | UAE Dirham 31.92 |
| ASTM A403 WP310 Elbow Cost in Mumbai | Rs. 580 | UAE Dirham 29.72 |
| Price of ASTM A403 WP310h Fittings in Mumbai | Rs. 676 | UAE Dirham 34.64 |
Buy directly from SS 310 180 Deg bend, Own stockyard of 310 Stainless Steel Pipe Bend, Buttweld End 310 SS Pipe End Cap, Stainless 310 Grade Pipe Fittings Mechanical Properties.
Properties of Stainless Steel Grade 310 3d Pipe Bend
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
