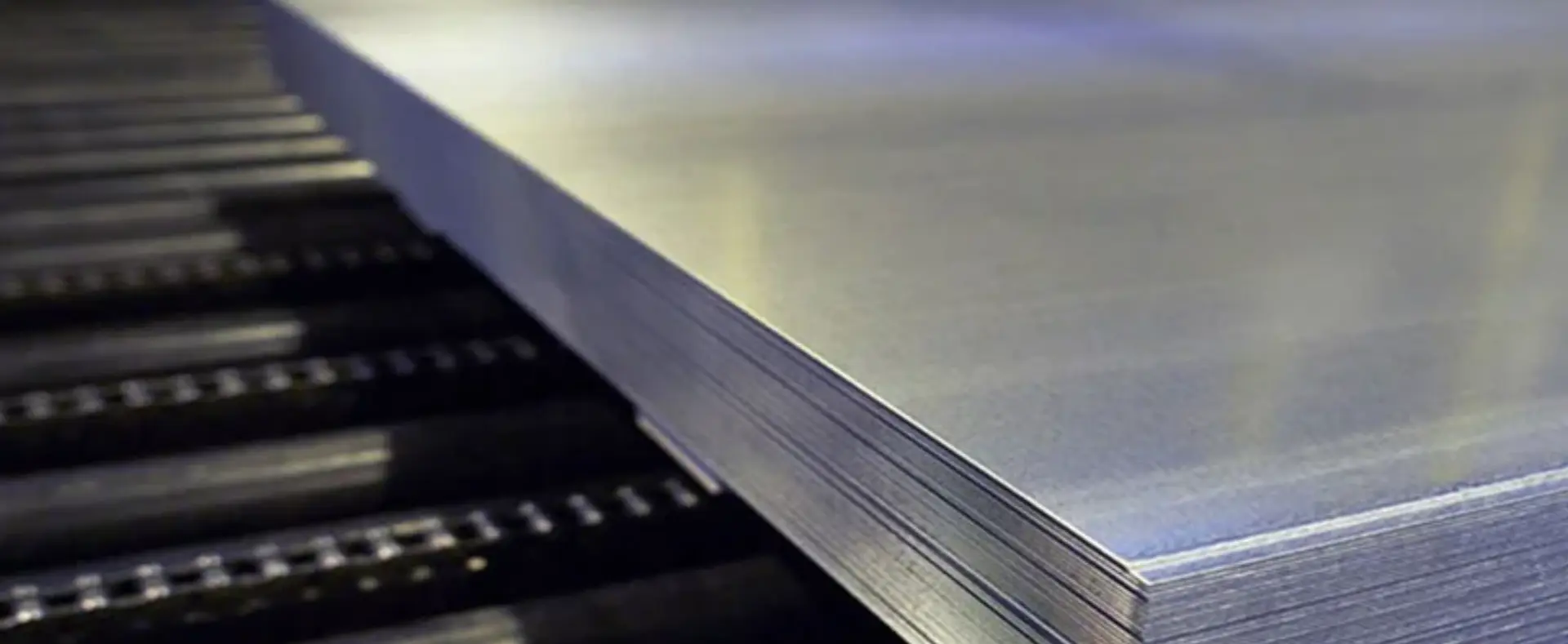

STAINLESS STEEL 304/ 304L/ 304H PLATES / SHEETS
Stainless Steel 304 Sheets, SUS 304H Plate, SS UNS S30400 Plates, 304H Stainless Steel Hot Rolled Plates, ASTM A240 SS 304 Sheets, Stainless Steel 304L Cold Rolled Sheets, SS Werkstoff No 1.4301 Sheets, SS 304 Perforated Plates Dealer in India.
Delta Steel is a well-known exporter of 304 stainless steel sheets worldwide. These sheets are designed to handle heavy weights and high-pressure conditions, and they can be customized based on clients’ specific drawings. Stainless Steel UNS S30400 plates are a popular type of non-magnetic, chromium, and nickel alloy steel. Our SS 304H perforated plates are commonly used in high-stress applications, making them ideal for the automobile and aircraft industries.
These plates have strong design strength at high temperatures, particularly between 1200°F and 1400°F (649°C to 760°C), which is why they are also considered for advanced reactor designs. ASTM A240 SS 304 sheets offer decent workability, although not as much as free machining stainless steel. Soldering SS 304L cold-rolled plates can be challenging due to issues like cracking. Stainless Steel 316 plates are suited for gas–tungsten–arc and gas–metal arc processes, and their high molybdenum content provides excellent resistance to pitting and crevice corrosion. The alloy’s stability during welding, aided by niobium, helps prevent inter-granular cracks. SS 304H plates also have good machinability in solution-treated conditions, making them similar to carbon and low-alloy steels in terms of microstructure.
Specification of Stainless Steel 304/ 304L/ 304H Plates / Sheets / Coil :
| Grade | Stainless Steel 304 | SS 304 | UNS S30400 |
| Standard | ASTM A240 / ASME SA240 |
| Thickness | 0.1mm To 100 mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |
304 Stainless Steel Plates Suppliers in UAE, SS UNS S30409 Plates Exporters in Saudi Arabia, ASTM A240 SS 304 Sheets Dealer in Malaysia, Stainless Steel 304H Cold Rolled Plates Manufacturers in Mumbai.
Type of Stainless Steel 304/ 304L/ 304H Plates/ Sheets/ Coils
Stainless Steel 304 Sheets UNS S30409 Sheets Werkstoff Nr. 1.4301 Sheets JIS SUS 304L/ 304H Sheets ASTM A240 SS 304H Sheets ISO Certified Alloy Stainless Steel 304 Sheets ASME SA240 Stainless Steel 304H Sheets
Stainless Steel 304 Plates UNS S30409 Plates Werkstoff Nr. 1.4301 Plates JIS SUS 304L/ 304H Plates ASTM A240 SS 304H Plates ISO Certified Alloy Stainless Steel 304 Plates ASME SA240 Stainless Steel 304H Plates
Stainless Steel 304 Coils UNS S30409 Coils Werkstoff Nr. 1.4301 Coils JIS SUS 304L/ 304H Coils ASTM A240 SS 304H Coils ISO Certified Alloy Stainless Steel 304 Coils ASME SA240 Stainless Steel 304H Coils
Dimensions of Stainless Steel 304/ 304L/ 304H Plates/ Sheets/ Coils
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS / COILS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
Circle cutting in Stainless Steel 304/ 304L/ 304H perforated sheets up to 1000mm diameter. :
| Hole Dia (in mm) | Hole Centres (in mm) |
O/A | Finish | Thk | Full Sheet Size (in mm) |
|---|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 2B | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 2B | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 2B | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 2B | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 2B | 1,0 | 2000 x 1000 |
PLAIN AND POLISHED Stainless Steel 304/ 304L/ 304H Sheet
| PRODUCT | FINISH | THICKNESS MM | MAX SHEET SIZE MM |
|---|---|---|---|
| Stainless Steel 304/ 304L/ 304H | Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 | |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 | |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 | |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
Size of Stainless Steel 304/ 304L/ 304H Plates/ Sheets, Coils
Type of Stainless Steel 304/ 304L/ 304H Plate Imperial size
| Surface finish | Thickness (in) | Width (in) |
|---|---|---|
| 1 – Stainless Steel 304/ 304L/ 304H Hot rolled, heat treated, pickled Plate & Sheet | .1000 – .3750 | max. 72 |
| 2R – Stainless Steel 304/ 304L/ 304H Cold-rolled, bright-annealed Sheet & Plate | 0.002–0.06 | 0.118–25.551 |
| 2H – Stainless Steel 304/ 304L/ 304H Work hardened Plate & Sheet | 0.002–0.06 | 0.118–24.803 |
| 2B – Stainless Steel 304/ 304L/ 304H Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 10–24 | max. 72* |
| 2D – Stainless Steel 304/ 304L/ 304H Cold rolled, heat treated, pickled Plate & Sheet | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Deco Rolled-On Mexinox only | 14–28 | max. 48 |
| Stainless Steel 304/ 304L/ 304H Polished Plate & Sheet (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
Size of Stainless Steel 304/ 304L/ 304H Plate Metric :
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 304/ 304L/ 304H 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |
| 2R – Stainless Steel 304/ 304L/ 304H Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 304/ 304L/ 304H Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 304/ 304L/ 304H Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 304/ 304L/ 304H Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 304/ 304L/ 304H Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 304/ 304L/ 304H Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 304/ 304L/ 304H Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |
| Stainless Steel 304/ 304L/ 304H Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
| Deco | 0.3–3.5 | max. 1524 |
| Stainless Steel 304/ 304L/ 304H Coil | 0.30–3.5 | max. 1,524 |
Available Stock of Stainless Steel 304/ 304L/ 304H Plates / Sheets / Coil:
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel 304 Sheet Stainless Steel 304L Sheet Stainless Steel 304H Sheet |
UNS S30400 Sheet UNS S30403 Sheet UNS S30409 Sheet |
1.4301 Sheet 1.4306/1.4307 Sheet 1.4301 Sheet |
 |
Stainless Steel 304 Plates Stainless Steel 304L Plates Stainless Steel 304H Plates |
UNS S30400 Plates UNS S30403 Plates UNS S30409 Plates |
1.4301 Plates 1.4306/1.4307 Plates 1.4301 Plates |
 |
Stainless Steel 304 Coils Stainless Steel 304L Coils Stainless Steel 304H Coils |
UNS S30400 Coils UNS S30403 Coils UNS S30409 Coils |
1.4301 Coils 1.4306/1.4307 Coils 1.4301 Coils |
 |
Stainless Steel 304 Foils Stainless Steel 304L Foils Stainless Steel 304H Foils |
UNS S30400 Foils UNS S30403 Foils UNS S30409 Foils |
1.4301 Foils 1.4306/1.4307 Foils 1.4301 Foils |
 |
Stainless Steel 304 Strip Stainless Steel 304L Strip Stainless Steel 304H Strip |
UNS S30400 Strip UNS S30403 Strip UNS S30409 Strip |
1.4301 Strip 1.4306/1.4307 Strip 1.4301 Strip |
Equivalent Grades of Stainless Steel 304/ 304L/ 304H Plates / Sheets / Coil :
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | SUS 304H | – | – | – | – |
Chemical Composition of Stainless Steel 304/ 304L/ 304H Plates / Sheets / Coil :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
Mechanical Properties of Stainless Steel 304/ 304L/ 304H Plates / Sheets / Coil :
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304/ 304L/ 304H Plates / Sheets / Coil Price Per Kg (As per demand and manufacturer):
| Price Rang by country | Sheet Price (per kg) |
Plate Price (per kg) |
Coil Price (per kg) |
|---|---|---|---|
| Stainless Steel 304/ 304L/ 304H Stainless Steel Price in India (₹) | 280 – 300 | 300 – 350 | 260 – 280 |
| Stainless Steel 304/ 304L/ 304H Price in Malaysia (RM) | 15.51 – 16.62 | 16.62 – 19.39 | 14.41 – 15.51 |
| Stainless Steel 304/ 304L/ 304H Price in Singapore (S$) | 5.02 – 5.38 | 5.38 – 6.28 | 4.66 – 5.02 |
| Stainless Steel 304/ 304L/ 304H Price in UAE (Dirham) | 13.51 – 14.47 | 14.47 – 16.88 | 12.54 – 13.51 |
| Stainless Steel 304/ 304L/ 304H Stainless Steel Price in UK (£) | 2.77 – 2.97 | 2.97 – 3.46 | 2.57 – 2.77 |
| Stainless Steel 304/ 304L/ 304H Stainless Steel Price in Europe (€) | 3.25 – 3.49 | 3.49 – 4.07 | 3.02 – 3.25 |
| Stainless Steel 304/ 304L/ 304H Price in USA ($) | 3.68 – 3.94 | 3.94 – 4.60 | 3.42 – 3.68 |
