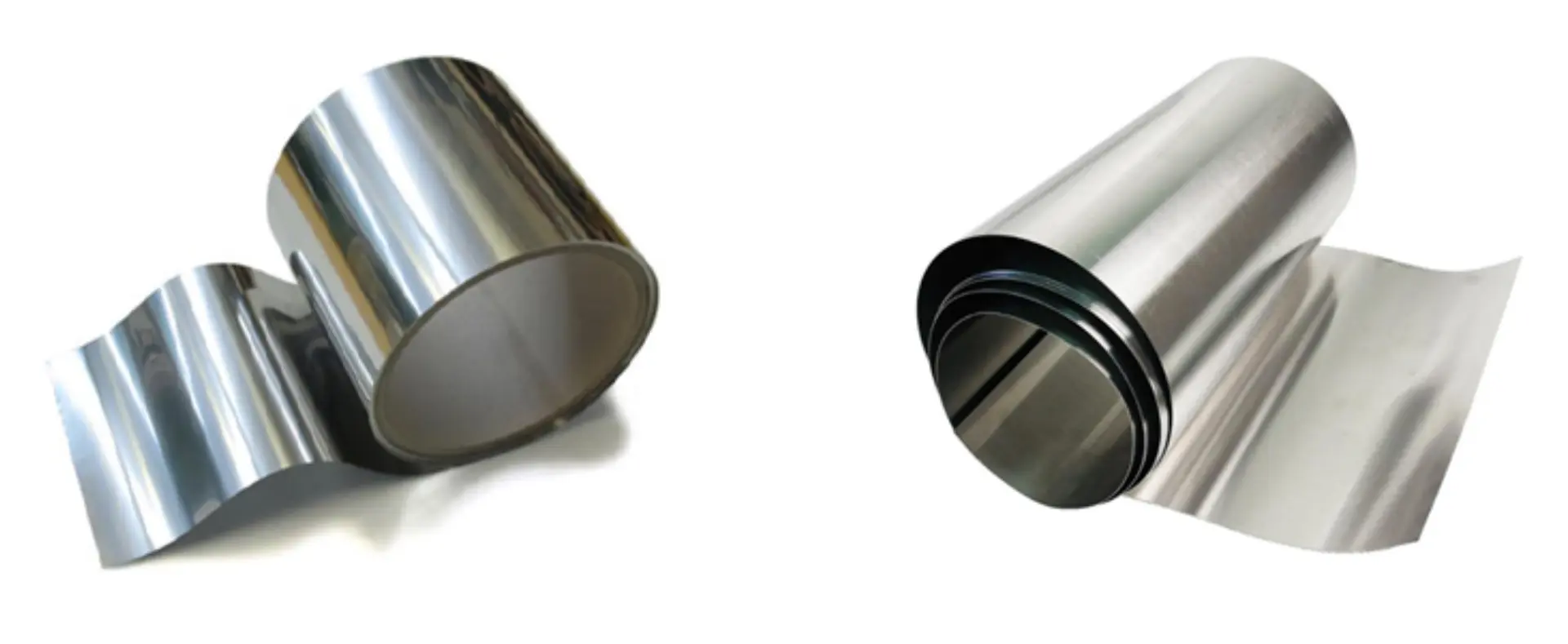

SS 201 / 202 Sheets, Plates & Coils
Stainless Steel 201 / 202 Sheets, Plates & Coils Stockiest and Suppliers
ASTM A240 SS 201 Sheets, DIN 1.4372 Steel 201 Hot Rolled Plates (HR), Stainless Steel 202 Strips Manufacturers, Steel S20200 Coils, SS 201 Perforated Coils, 202 Stainless Steel Plates Suppliers in India, Stainless Steel 201 Plates Suppliers
We are a trusted supplier, exporter, and stockist of a wide range of stainless steel 201/202 sheets, plates, and coils. Our stainless steel 201 sheets and coils are made with high-quality steel using the latest technology. At Delta Steel, we offer stainless steel 201/202 sheets and 201 plates, as well as SS 202 coils, which can be customized to meet industry standards and manufacturing regulations. The higher stainless steel content in SS 202 sheets, 201 plates, and 202 coils provides increased strength and durability.
Designed to meet the needs of various industries, our SS 201/202 sheets, plates, and coils are available in widths from 6 mm to 460 mm and thicknesses ranging from 0.05 mm to 3.00 mm. The SS 202 steel sheet and SS 201 plate are perfect for applications that require anti-oxidation properties. We also offer SS 202 perforated sheets, SS 201 plain sheets, SS 201 strips, and SS 202 flats in different sizes, thicknesses, lengths, and finishes to suit your specific requirements.
Specifications for SS 201 / 202 Sheets, Plates and Coils
| Grade | Stainless Steel 201, UNS S20100, Workstoff NR. 1.4372 |
| Grade | Stainless Steel 202, UNS S20200, Workstoff NR. 1.4373 |
| Specifications | ASTM A240, A480 / ASME SA240 / A480 |
| Width | 1000 mm, 1219 mm, 1500 mm, 1800 mm, 2000 mm, 2500 mm, 3000 mm, 3500 mm, etc |
| Length | 2000 mm, 2440 mm, 3000 mm, 5800 mm, 6000 mm, etc |
| Thickness | Min: 0.4mm Max: 6.0mm |
| Finish | Cold Rolled Sheet (CR), Hot Rolled Plate (HR), SATIN (Met with Plastic Coated), 2B, 2D, BA NO(8) |
| Form | Foils, Rolls, Chequered Plate, Flats, Blank (Circle), Shim Sheet, Strip, Plain Sheet, Coils, Perforated Sheet, Ring (Flange) etc. |
| Surface | 2B, 2D, BA, No.1, No.4, No.8, 8K, Brush, checkered, embossed, sand blast, mirror, hair line, etching, etc |
Manufacturing Process
The machinability of grade 202 stainless steel results in long, sticky chips during machining. Machining can also be done in its hardened state. For heat treatment, the material should be heated to 1038°C (1900°F) for 30 minutes and then cooled below 16°C (60°F) to achieve full martensite transformation. This steel can be welded using standard fusion and resistance methods, but oxyacetylene welding should be avoided. The recommended filler metal is AWS E/ER630. Forging can be done after heating the material for 1 hour at 1177°C (2150°F). Forging below 1010°C (1850°F) is not recommended.
Fabrication and Heat Treatment
Forming Grade 201 stainless steel can be shaped using common forming methods and forces similar to those used for 300-series stainless steels.
Welding Grade 201 stainless steel can be welded with all standard welding techniques.
Hot Working Grade 201 stainless steel is hot worked at temperatures between 1149°C and 1232°C (2100°F to 2250°F).
Annealing Grade 201 stainless steel is annealed at temperatures between 1010°C and 1093°C (1850°F to 2000°F). The temperature should not exceed 2000°F to avoid scaling. It should be cooled quickly to prevent carbide formation.
Equivalent Grades of 201 /202 Stainless Steel Sheets, Plates & Coil
| STANDARD | GOST | JIS | UNS | WERKSTOFF NR. | EN | BS | AFNOR |
| SS 201 | STS 317J5 | SUS 201 | S20100 | 1.4372 | X1NiCrMoCu25-20-5 | 904S13 | Z2 NCDU 25-20 |
| SS 202 | – | – | S20200 | 1.4373 | – | – | – |
Chemical Composition of 201 / 202 SS Sheets, Plates & Coil
| Grade | Mn | Mo | Si | S | Fe | Cr | Ni | C | P |
| SS 201/202 | 7.50-10 | 4.00 – 5.00 | 1.00 max | 0.030 max | 68/72 | 17-19 | 4.00-6.00 | 0.15 max | 0.060 max |
Mechanical Properties of 201 / 202 SS Sheets, Plates & Coil
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
SS 201 Sheets, Plate & Coils Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Speciality Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment201
Material Testing at Delta Steel :-
• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
Stockiest and Supplier of Stainless Steel 201 Sheets, Plates and Coils :-
We are a leading stockist, exporter, and supplier of stainless steel plates, sheets, and coils. Our stainless steel products offer excellent corrosion resistance. We provide SS coils, sheets, and plates in various sizes, specifications, grades, and thicknesses to meet our customers’ needs. These sheets and plates are widely used in many industries. We also supply all grades of stainless steel, including SS 304, 304L, 316, 316L, 310, and 310S sheets, plates, and coils.
