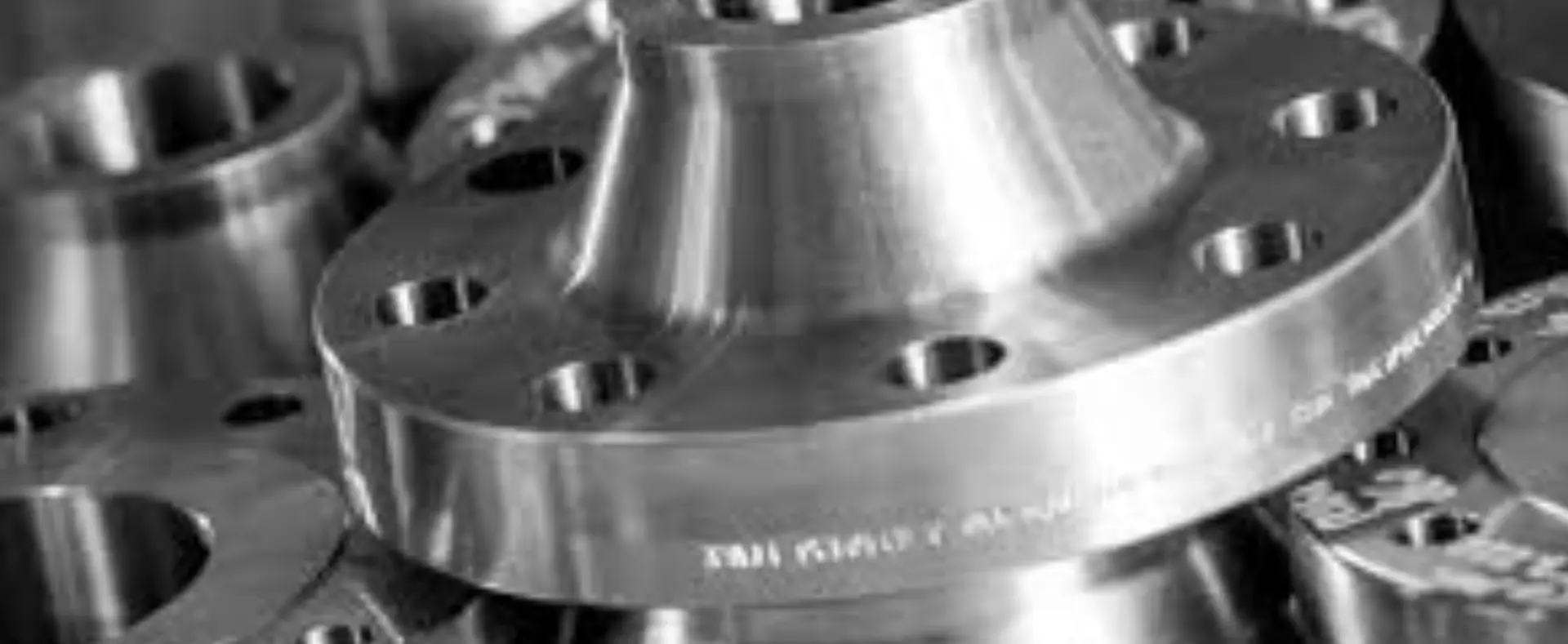

Inconel 600/625 Flanges Manufacturer
Customized high quality Alloy 625 Slip On Flange manufacturer in India, Check UNS N06625 BLRF Flange Weight Chart
Inconel 625 Flanges are made from a durable nickel-chromium alloy, consisting of 58% nickel and 20% chromium, along with carbon, manganese, silicon, sulfur, copper, and iron. Delta Steel is a top supplier and manufacturer of these flanges in various sizes and types. The material has an impressive tensile strength of 930 MPa and a minimum yield strength of 517 MPa. With a melting point of 1350°C, these flanges are perfect for demanding and high-stress applications.
Alloy 625 Flanges, ASME Sb564 Alloy 625 Orifice Flange, Inconel Gost ХН75МБТЮ Long Weld Neck Flange Price in India.
There are various types of flanges, such as the Alloy 625 Slip-On Flange and more. These flanges fall under the ASTM B564 specifications, which cover nickel alloy, Inconel, Monel, and Hastelloy flanges. They come in sizes ranging from ½ inch to 60 inches, depending on the flange type. One example is the UNS N06625 BLRF Flange, which features a blind and raised face design. Blind flanges are used to close off connections and have a raised face when additional surface area is needed for welding or bolting. These flanges comply with standards like ANSI, ASME B16.5, B16.47, and others.
Alloy 625 flanges are available in various pressure classes, ranging from 150, 300 up to 2500, and PN6 to PN64. These flanges have different uses, like the ASME Sb564 Alloy 625 Orifice Flange. Their applications include condensers, the pulp and paper industry, petrochemical industries, pharmaceuticals, specialty chemicals, power generation, offshore oil drilling, gas processing, and heat exchangers. The ASTM B564 UNS N06625 RTJ Flange is a ring-type joint flange, used to weld two pipes together. For more information on our Inconel 625 flanges and pricing, feel free to contact us.
Alloy 625 Slip On Flange Specification List
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique | Forged, Heat treated and machined |
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
Forged ASTM B564 UNS N06625 RTJ Flange, Inconel 625 Din 2.4856 Threaded Flanges dimension, Nickel Alloy 625 Spectacle Blind Flanges India, Check Inconel UNS N06625 Pipe Flanges weight chart
UNS N06625 BLRF Flange Size Schedule Chart
| Inconel 625 Flanges | 1/2″ (15 NB) to 48″ (1200NB) |
| 625 Inconel Slip on Flanges | 1/2″ NB – 12″ NB |
| 625 Inconel Alloy Blind Flanges | 1/2″ NB – 24″ NB |
Chemical Composition of alloy 625 flanges
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Inconel 625 | 8.4 g/cm3 | 1350 ?C (2460 ?F) | Psi ? 1,35,000 , MPa ? 930 | Psi ? 75,000 , MPa ? 517 | 42.5 % |
Mechanical Properties Analysis of Alloy 625 Orifice Flange
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | ? | 5.0 max | 58.0 min | 20.0 ? 23.0 |
Equivalent Material Of ASTM B564 UNS N06625 RTJ Flange
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ??75???? | NC22DNB4M | NiCr22Mo9Nb |
Pressure classes of Inconel 625 Din 2.4856 Threaded Flanges
| ASME/ANSI B 16.5 | Slip on, Welding Neck, High Hub Blind, Blind,Lap Joint, Socket Weld, Ring Type Joint, Threaded Flange |
|---|---|
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind [Series A & B], Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on, Welding Neck, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Hubbed Slip on, Welding Neck, Lapped Pipe End, Hubbed Threaded, Loose Plate, Plate, Blank, Loose Plate With Weld Neck Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck, Plate, Hubbed Slip-On Hubbed Threaded, Blank, Loose Plate With Weld On Plate Collar Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Socket Welding, Welding Neck, Blind, Slip-On, Lapped, Screwed Boss Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate, Slip-On, Welding Neck, Slip-On Boss, Screwed Boss, Blind Flange |
| TABLE | D, E, F, H |
| DINS | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Nickel Alloy 625 Spectacle Blind Flanges Weight
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flange | PN14 Flange | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flange | 95 | 67 | 4 | 13 | 14 |
| Table D Flange | 95 | 67 | 4 | 13 | 14 | |
| Table E Flange | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
We have Huge Stock of Alloy 625 Plate flange, Inconel 625 Alloy Lap Joint Flange in India. Inconel Alloy 625 Screwed Flanges specification.
Inconel UNS N06625 Pipe Flanges Dimension Table
| AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
|---|
Cheap Price Wholesale ASTM B564 Inconel 625 Forged Flanges, Inconel Din 2.4856 Weld Neck Flange, Din pn16 625 Alloy Socket Weld Flanges, view Inconel 625 blind flange pressure rating
ANSI B16.5 Alloy 625 Nippolet Flanges Price
| ASTM B564 Inconel 625 Pipe Flange Price in India | Inconel 625 ASTM B564 Flange Price in INR | Inconel 625 ASTM B564 Flange Price in UAE Dirham |
| Inconel 625 ASTM B564 1?Slip on Flange Price in India | 62467.42 | UAE Dirham 3302.99 |
| ASTM B564 Inconel 625 blind flange Price in India | 43015.82 | UAE Dirham 2274.48 |
| ASTM B564 Inconel 625 1-1/2?Blind flange Price in India | 133097.57 | UAE Dirham 7037.58 |
| Inconel 625 ASME SB564 Slip-On Flange Price List | 63974.92 | UAE Dirham 3382.70 |
