Hastelloy C276 Round Bars & Rods Supplier, Stockist

Hastelloy C276 Round Bars & Rods Supplier, Stockist

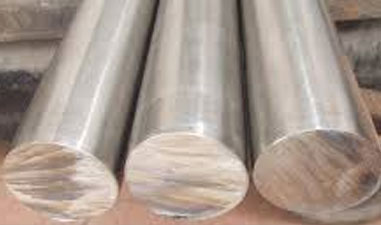

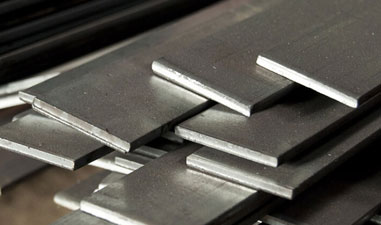

View Alloy C276 Rod, Leading C22 Flat Bar supplier in India

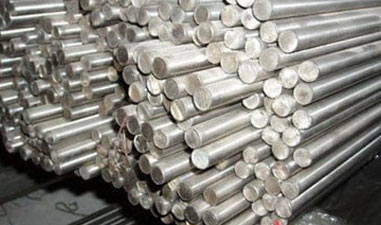

Hastelloy Round Bar is made from a nickel alloy that includes 15% molybdenum and 14.5% chromium. This material is known for its excellent resistance to corrosion and high temperatures, as well as its strong durability. Delta Steel manufactures Hastelloy Round Bars in a variety of sizes and dimensions.

Hastelloy B3 Round Bar

Hastelloy B3 ASTM B335 Flat Bar

ASME SB 335 Hastelloy B-3 Rod

Buy Hastelloy C276 Hex Bar, ASTM B574 Hastelloy C276 Bright bar, Hastelloy UNS N10276 Square Bar Directly From The Manufacturer In India

The material is made up of carbon, manganese, silicon, cobalt, phosphorus, iron, nickel, sulfur, tungsten, and vanadium. It’s one of the most corrosion-resistant alloys available. The Alloy C276 Rod is very strong, with a minimum tensile strength of 790 MPa and a yield strength of 355 MPa. Its high strength makes it suitable for structural and heavy-duty applications. Additionally, it has a high melting point of 1370°C, allowing it to perform well in high-temperature environments.

We are a top supplier of C22 Flat Bars, providing bars for various industries, including offshore oil drilling, seawater equipment, heat exchangers, pulp and paper, condensers, pharmaceuticals, specialty chemicals, petrochemicals, and power generation. The Hastelloy C276 Hex Bar is popular in structural applications due to its extra strength. Our bars meet ASTM B574 standards and comply with EN, DIN, JIS, ASTM, BS, ASME, and AISI specifications. Sizes range from 5mm to 500mm in width and 0.1mm to 100mm in diameter. We offer various finishes like bright, black, rough-turned, no. 4, matt, and BA finishes. Tolerances and tempers vary from H8 to H13 and K9 to K12. Standard bar lengths range from 100mm to 3000mm, with custom sizes available. Contact us for any type of bars, including Hastelloy UNS N10276 Square, round, or hex bars.

Specification Chart of Alloy C276 Rod

Specifications ASTM B574 / ASTM SB574
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI
Size 5 mm To 500 mm
Diameter 0.1 mm to 100 mm
Length 100 mm To 3000 mm Long & Above
Finish Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Form Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

Ready Stock Of Hastelloy C276 Uns N10276 Cold Drawn Round Bar, Hastelloy Alloy C276 Forged Bars, C276 Hastelloy Alloy Hexagonal Bar, Check Hastelloy C22 ASTM B574 Polished Bar Dimensions

Dimensions of C22 Flat Bar

Metric US Bar ASTM/ Canadian Japanese
Bar Size Diam. (mm) Bar Size Diam. (Inch) Bar Size Diam. (mm2) Bar Size Diam. (mm)
5 5 #2 0.250 10M 100 6 6
5.5 5.5 #3 0.375 15M 200 10 10
6 6 #4 0.500 20M 300 13 13
7 7 #5 0.625 25M 500 16 16
8 8 #6 0.750 30M 700 19 19
9 9 #7 0.875 35M 1000 22 22
10 10 #8 1.000 45M 1500 25 25
11 11 #9 1.125 55M 2500 29 29
12 12 #10 1.250 32 32
14 14 #11 1.375 35 35
16 16 #12 1.500 38 38
18 18 #13 1.625 41 41
20 20 #14 1.750 44 44
22 22 #15 1.875 48 48
25 25 #16 2.000 51 51
28 28 #18 2.250 57 57
32 32
36 36
40 40
44 44
50 50

Standard Grade of Hastelloy C276 Hex Bar

  • C276 Hastelloy Bars & Rods
  • C22 Hastelloy Bars & Rods
  • B2 Hastelloy Bars & Rods
  • B3 Hastelloy Bars & Rods
  • X Hastelloy Bars & Rods
  • Hastelloy C4 Round Bars & Rods
  • Hastelloy C Round Bars & Rods

Size Chart of ASTM B574 Hastelloy C276 Bright bar

Type SIZES (mm) SIZES (Inches) ISO Tolerance
Cold Drawn and Ground 10.00 – 75.00 5/6″ – 2.50″ h8-h9-h10-h11
Peeled and Polished 40.00 – 150.00 1.50″ – 6.00″ h11, h11-DIN 1013
Peeled and Ground 20.00 – 50.00 3/4″ – 2.00″ h9-h10-h11
Cold Drawn and Polish 3.00 – 75.00 1/8″ – 3.00″ h8-h9-h10-h11

Hastelloy Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

5.0 45.0
6.0 50.0
7.0 55.0
8.0 60.0
9.0 65.0
10.0 70.0
12.0 75.0
16.0 80.0
20.0 90.0
25.0 100.0
30.0 130.0
35.0 160.0
40.0 200.0

Chemical Element of Hastelloy UNS N10276 Square Bar

Grade C Mn Si Co P Fe Mo Ni Cr S W V
Hastelloy C276 0.010 max 1 max 0.08 max 2.5 max 0.04 max 4 – 7 15 – 17 Bal 14.5-16.5 0.03 max 3.0-4.5 0.35 max

Properties of Alloy C276 UNS N10276 Cold Drawn Round Bar

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52000 , MPa – 355 40%

Tolerance List of Hastelloy Alloy C276 Forged Bars

Cold Drawn C276 Hastelloy Alloy Round Bar Tolerance & Steel Hexagon, Flat Tolerance (BS 970-3)

Tolerances for Cold Drawn Hastelloy C276 Round Bar
Shape / Section Size, diameter or width across flats Permitted variation
mm mm
Round ≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
Flat (thickness) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.250
+ 0 to – 0.350
Flat (width) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.190
+ 0 to – 0.220
+ 0 to – 0.350
+ 0 to – 1.00
+ 1.00 to – 1.00
Square and
hexagon		 ≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105		 + 0 to – 0.090
+ 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.250

Tolerances of Turned ASTM B574 Alloy C276 Round Bar (BS 970-3)

Alloy C276 round bars Size, diameter Permitted variation
mm mm
≧ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 120
> 120 ≦ 180
> 180 ≦ 250
> 250 ≦ 315
> 315 ≦ 400
> 400		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
+ 0 to – 0.160
+ 0 to – 0.185
+ 0 to – 0.210
+ 0 to – 0.230
+ 0 to – 0.250

Tolerances of Turned ASTM B574 Alloy C276 Round Bar (BS 970-3)

Tolerances of Precision Alloy WERKSTOFF NR. 2.4819 Round Bars (BS 970-3)

Precision Nickel Alloy C276 Round Bars Tolerances
Section Size,
diameter		 Permitted overall variation
Class A Class B Class C
mm mm mm mm
Round ≧ 6 <75 0.05 0.025 0.013

Tolerance of Alloy UNS N10276 Bright Round Bars (BS EN ISO 286-2 )

Alloy C276 round bars Tolerance ISO “H” Series in MM
NOMINAL SIZE h5 h6 h7 h8 h9 H10 H11 h12
DIAMETER mm
~ to 3 +0.004/0 +0.006/0 +0.01/0 +0.014/0 +0.025/0 +0.04/0 +0.06/0 +0.1/0
over 3 to 6 +0.005/0 +0.008/0 +0.012/0 +0.018/0 +0.03/0 +0.048/0 +0.075/0 +0.12/0
over 6 to 10 +0.006/0 +0.009/0 +0.015/0 +0.022/0 +0.036/0 +0.058/0 +0.09/0 +0.15/0
over 10 to 18 +0.008/0 +0.011/0 +0.018/0 +0.027/0 +0.043/0 +0.07/0 +0.11/0 +0.18/0
over 18 to 30 +0.009/0 +0.013/0 +0.021/0 +0.033/0 +0.052/0 +0.084/0 +0.13/0 +0.21/0
over 30 to 50 +0.011/0 +0.016/0 +0.025/0 +0.039/0 +0.062/0 +0.1/0 +0.16/0 +0.25/0
over 50 to 80 +0.013/0 +0.019/0 +0.03/0 +0.046/0 +0.074/0 +0.12/0 +0.19/0 +0.3/0
over 80 to 120 +0.015/0 +0.022/0 +0.035/0 +0.054/0 +0.087/0 +0.14/0 +0.22/0 +0.35/0
over 120 to 180 +0.018/0 +0.025/0 +0.04/0 +0.063/0 +0.1/0 +0.16/0 +0.25/0 +0.4/0
over 180 to 250 +0.02/0 +0.029/0 +0.046/0 +0.072/0 +0.115/0 +0.185/0 +0.29/0 +0.46/0
Alloy C276 round bars Size, diameter Permitted variation
mm mm
≧ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 120
> 120 ≦ 180
> 180 ≦ 250
> 250 ≦ 315
> 315 ≦ 400
> 400		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
+ 0 to – 0.160
+ 0 to – 0.185
+ 0 to – 0.210
+ 0 to – 0.230
+ 0 to – 0.250

Hastelloy C22 ASTM B574 Polished Bar Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS EN GOST OR
Hastelloy C276 2.4819 N10276 NW 0276 NiMo16Cr15W ХН65МВУ ЭП760

Hot Rolled DIN 2.4819 Round Bar Chart And Weight

Round Bar
Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr
3 0.017 0.055 20 0.753 2.470 3″ 10.900 35.762
1/8″ 0.019 0.062 22 0.908 2.979 3-1/4″ 12.800 41.996
5/32″ 0.029 0.095 7/8″ 0.926 3.038 3-1/2″ 14.850 48.772
4 0.030 0.098 24 1.080 3.543 3-3/4″ 17.001 55.780
3/16″ 0.043 0.141 25 1.180 3.871 4″ 19.306 63.340
5 0.047 0.154 1″ 1.210 3.970 4-1/4″ 21.908 72.249
7/32″ 0.058 0.190 26 1.271 4.170 4-1/2″ 24.4487 80.340
6 0.068 0.223 27 1.368 4.490 4-3/4″ 27.366 90.249
1/4″ 0.076 0.249 1-1/8″ 1.534 5.033 5″ 30.461 99.940
7 0.091 0.298 30 1.691 5.548 5-1/2″ 36.690 121.000
5/16″ 0.118 0.387 1-1/4″ 1.924 6.349 6″ 43.860 143.900
8 0.120 0.398 32 1.894 6.314 6-1/2″ 51.093 167.630
9 0.152 0.498 1-3/8″ 2.303 7.550 7″ 59.432 196.000
3/8″ 0.170 0.557 35 2.390 7.553 7-1/2″ 68.226 225.000
10 0.189 0.620 36 2.438 7.999 8″ 77.586 254.55
11 0.228 0.748 38 2.792 8.903 10″ 121.048 397.140
7/16″ 0.232 0.761 1-1/2″ 2.715 8.951
12 0.271 0.889 40 3.009 9.872
1/2″ 0.303 0.994 1-5/8″ 3.200 10.449
13 0.318 1.043 1-3/4″ 3.712 12.179
14 0.368 1.207 45 3.807 12.555
9/16″ 0.383 1.256 1-7/8″ 4.260 13.977
15 0.424 1.391 48 4.330 14.205
5/8″ 0.473 1.551 50 4.698 15.414
16 0.481 1.578 2″ 4.848 15.906
17 0.543 1.791 2-1/8″ 5.475 17.963
11/16″ 0.573 1.880 2-1/4″ 6.135 20.128
18 0.610 2.001 60 6.768 22.205
3/4″ 0.682 2.237 2-3/8″ 6.838 22.435
2-1/2″ 7.576 24.856
2-5/8″ 8.354 27.409
2-3/4″ 9.169 30.083
