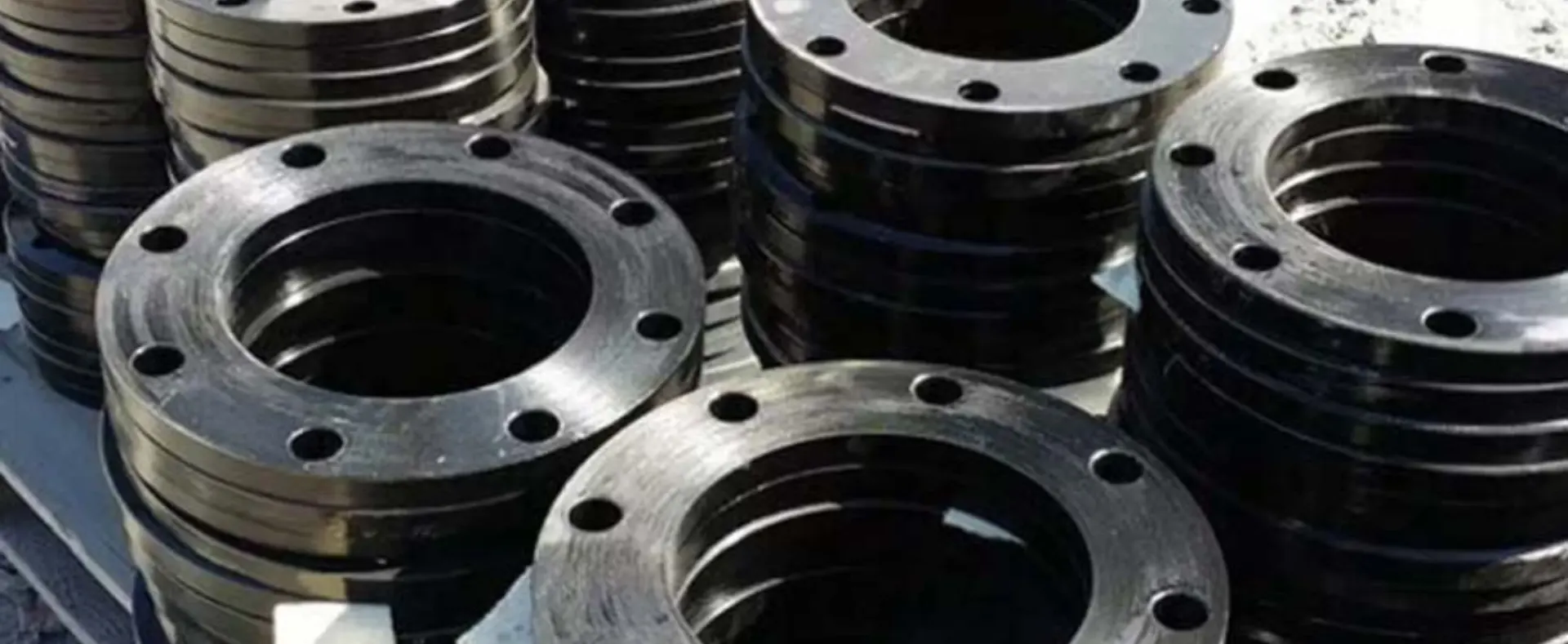

ASTM A694 flanges manufacturers

ASME SA694 High Yield CS F52 Slip On Flange, ASTM A694 F65 Blind Flange suppliers in India

The ASTM A694 flange is available in various grades like F42, F52, F60, F65, and F70, which differ based on their chemical makeup. The ASME SA694 High Yield CS F52 Slip-On Flange contains elements such as carbon, silicon, manganese, phosphorus, sulfur, molybdenum, nickel, chromium, copper, vanadium, and niobium in its composition.

ASME SA694 High Yield CS F52 Slip On Flange, ASTM A694 F65 Blind Flange suppliers in India

Delta Steel supplies a wide range of flanges, including all types in this specification. The ASTM A694 F65 Blind Flange is used to close off a pipe. Flanges, fittings, valves, and other components in the A694 specification are designed for high-pressure transmission. The Carbon Steel ASTM A694 F70 Flange is commonly found in industries like petrochemicals, oil and gas, and nuclear power. Different flange types are used for various connection needs.

The CS ASTM A694 F52 Slip On Flange is made from F52 carbon steel and allows pipes to easily slip through for precise fitting and positioning. It’s commonly used with seamless pipes. Another type is the ANSI B16.5 F60 Weld Neck Flange, which ranges in size from ½ inch to 48 inches in nominal bore. It has a welded neck, offering extra grip and support for the pipes. For more details on ASTM A694 flange sizes, types, and prices, please contact us.

ASME SA694 CS F52 Slip On Flange Specification Schedule

SpecificationsASTM A694 / ASME SA694
DimensionsANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
StandardANSI, ASME, BS, DIN, EN etc.
GradesF42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60
Size1/2″ to 48″
Class / Pressure150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face TypeFlate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Check High Yield CS A694 F42 Plate Flanges Price List, ASME SA 694 F65 Flange, view properties of ASTM A694 F65 Threaded Flanges

ASTM A694 F65 Blind Flange Composition Standard

Element F42 Content, % F52 Content, % F60 Content, % F65 Content, % F70 Content, %
Carbon (C) 0.13~0.20 0.16~0.22 0.17~0.23 0.17~0.23 0.06~0.10
Silicon (Si) 0.20~0.40 0.15~0.40 0.15~0.40 0.15~0.40 0.20~0.40
Manganese (Mn) 1.20~1.60 1.10~1.40 1.20~1.50 1.30~1.60 1.10~1.40
Phosphorous (P) ≤ 0.030 ≤ 0.025 ≤ 0.020 ≤ 0.025 ≤ 0.020
Sulfur (S) ≤ 0.020 ≤ 0.012 ≤ 0.012 ≤ 0.015 ≤ 0.010
Molybdenum (Mo) 0.20~0.35 0.45~0.60 0.45~0.65 1.20~1.70
Nickel (Ni) ≤ 0.30 ≤ 0.50 0.40~1.00 ≤ 0.30 0.20~0.40
Chromium (Cr) ≤ 0.30 ≤ 0.30 ≤ 0.25 ≤ 0.30 ≤ 0.30
Copper (Cu) ≤ 0.25 ≤ 0.25 ≤ 0.25 ≤ 0.25 ≤ 0.25
Vanadium (V) ≤ 0.050 0.02~0.06
Niobium (Nb) 0.025~0.050
Pcm ≤ 0.25
Carbon Equivalent ≤ 0.48 ≤ 0.48 ≤ 0.48 ≤ 0.43 ≤ 0.48

Carbon Steel ASTM A694 F70 Flange Mechanical Characteristics

ASTM A694 Grade Yield Strength min. Tensile Strength min. Elongation min.
MPa ksi MPa ksi %
A694 F42 FLANGES 290 42 415 65 20
A694 F46 FLANGES 315 46 415 60 20
A694 F48 FLANGES 330 48 425 62 20
A694 F50 FLANGES 345 50 440 64 20
A694 F52 FLANGES 360 52 455 66 20
A694 F56 FLANGES 385 56 470 68 20
A694 F60 FLANGES 415 60 515 75 20
A694 F65 FLANGES 450 65 530 77 20
A694 F70 FLANGES 485 70 565 82 18

ANSI B16.5 F60 Weld Neck Flanges Weight Chart

Standard Class Diameter Bolt Circle Diameter Number of Bolts Bolt Size Diameter of Bolt Hole
AS4087 PN14 95 67 4 M12 14
AS 2129 Flange Table C 95 67 4 13 14
Table D 95 67 4 13 14
Table E 95 67 4 13 14
Table F 95 67 4 13 14
Table H 114 83 4 16 17
Table J 114 83 4 16 17
ANSI B16.5 ANSI 150 89 60 4 13 16
ANSI 300 95 67 4 13 16
ANSI 600 95 67 4 13 16
ANSI 900 121 83 4 19 22
ANSI 1500 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 80 55 4 M10 11
PN10 95 65 4 M12 14
PN16 95 65 4 M12 14
PN20 90 60.5 4 M14 16
PN25 95 65 4 M12 14
PN40 95 65 4 M12 14

ASTM A694 Flange Pressure

ASME/ANSI B 16.5 Welding Neck, Slip on, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, Ring Type Joint Flanges
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Welding Neck, Blind [Series A & B] Flanges
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36 Welding Neck, Slip on, Threaded Flanges
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Welding Neck, Hubbed Slip on, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Loose Plate With Weld Neck, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Welding Neck, Hubbed Slip-On Hubbed Threaded, Plate, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind Flange
TABLE D, E, F, H
DIN Flange DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100
Cheap Price Wholesale High Yield ASTM A694 Reducing Flanges, ASTM A694 F70 High Yield BS 10 Socket Weld Flanges, view ASTM A694 Flanges Dimensions

Price list of High Yield CS A694 F42 Plate Flanges

ASTM A694 Flanges Price Per Piece in India ASTM a694 Steel Flanges Price in INR
Astm a694 f70 Steel Flange $1,500.00-$1,600.00/ Ton
ASTM A694 F65 forged flange $29.00-$36.00/ Ton
astm a694 gr f52 wn flange $6.00-$8.00/ Piece
astm a694 carbon steel flange/a105 wn rtj flange $1.00-$500.00/ Piece
